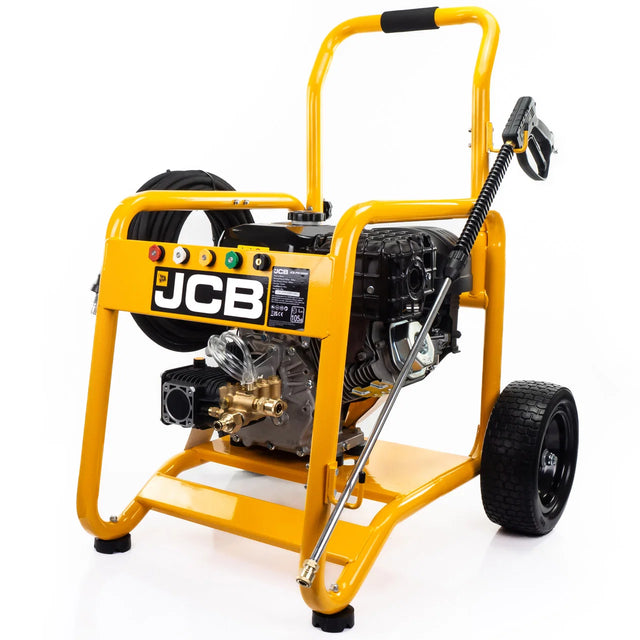

JCB Petrol Pressure Washer 4000 PSI / 276 Bar – JCB-PW15040P

Built for demanding professional cleaning, the JCB-PW15040P petrol pressure washer combines a powerful 457cc JCB engine with a commercial-grade Annovi Reverberi triplex pump.

Producing up to 4000 PSI / 276 bar of pressure and a maximum water flow of 15 litres per minute, it is designed to remove stubborn dirt from large outdoor areas, machinery, commercial vehicles and equipment.

Powerful 457cc JCB Engine

The pressure washer is powered by a 457cc, four-stroke JCB petrol engine with Euro V emissions compliance and recoil starting.

Its strong low- and mid-range torque allows the machine to deliver effective cleaning performance without continually operating at maximum engine speed. This can help reduce fuel consumption, operating noise and unnecessary engine wear.

An automatic low-oil cut-out system protects the engine by shutting it down when the engine oil level becomes too low.

Commercial-Grade Annovi Reverberi Pump

The JCB-PW15040P features an Annovi Reverberi RSV4G40 commercial-grade triplex pump.

The direct-drive pump includes:

• Ceramic pistons

• Durable brass pump head

• Built-in unloader valve

• Integrated thermal relief valve

• Maximum pressure of 4000 PSI / 276 bar

• Working pressure of 3600 PSI / 248 bar

• Maximum water flow of 15 litres per minute

The triplex pump construction is designed to provide dependable performance during demanding cleaning applications.

Extra-Long High-Pressure Hose

A 15.24-metre high-pressure hose provides extended reach when cleaning large areas.

The longer hose allows the operator to move around vehicles, machinery, driveways and work areas without constantly repositioning the pressure washer.

Five Quick-Connect Nozzles

Five interchangeable quick-connect nozzles are supplied for different cleaning requirements:

• 0° concentrated jet nozzle

• 15° cleaning nozzle

• 25° cleaning nozzle

• 40° wide-angle nozzle

• Low-pressure detergent nozzle

The quick-connect system allows nozzles and compatible attachments to be changed without threaded fittings or tools.

Multiple Water-Supply Options

This cold-water pressure washer can be operated from several water sources:

• Mains water supply

• Gravity-fed water supply

• Suction feed from a tank, barrel or water source

The suction system has been tested with a vertical lift of up to two metres.

Heavy-Duty Steel Frame

The machine is mounted within a durable 32mm tubular steel frame to provide protection and stability.

A removable soft-grip handle helps reduce the machine’s overall storage size and may also help prevent transit damage.

Anti-vibration feet improve stability, protect the frame and reduce vibration and operating noise.

Puncture-Proof Wheels

Large puncture-proof wheels make the pressure washer easier to move across rough, uneven or outdoor surfaces.

Because the tyres are not air-filled, there is no risk of downtime caused by a flat tyre.

Suitable Applications

The JCB-PW15040P is suitable for cleaning:

• Driveways

• Patios and paved areas

• Large residential properties

• Estates

• Agricultural machinery

• Tractors and equipment

• Trucks and commercial vehicles

• Construction equipment

• Workshops

• Industrial areas

• Commercial outdoor surfaces

• Heavily soiled equipment

Key Features

• Maximum pressure of 4000 PSI / 276 bar

• Working pressure of 3600 PSI / 248 bar

• Maximum flow rate of 15L/min

• 457cc four-stroke JCB petrol engine

• Euro V emissions-compliant engine

• Recoil starting system

• Annovi Reverberi RSV4G40 triplex pump

• Ceramic pump pistons

• Brass pump head

• Built-in unloader valve

• Integrated thermal relief valve

• Direct-drive pump system

• Automatic low-engine-oil cut-out

• 15.24m high-pressure hose

• Five quick-connect spray nozzles

• Low-pressure detergent capability

• Mains, gravity and suction-feed capability

• Suction lift tested up to 2m

• 32mm tubular steel frame

• Removable soft-grip handle

• Anti-vibration feet

• Puncture-proof wheels

• 6.5L fuel tank

• Suitable for demanding professional cleaning

Technical Specifications

Brand: JCB
Model: JCB-PW15040P
Product type: Petrol pressure washer
SKU: JCB-PW15040P
Barcode: 5059608313048

Fuel type: Petrol
Starting method: Recoil start
Engine type: Four-stroke, Euro V
Engine displacement: 457cc
Fuel tank capacity: 6.5L
Engine oil capacity: 1200ml
Drive type: Direct drive

Maximum pressure: 4000 PSI / 276 bar
Working pressure: 3600 PSI / 248 bar
Maximum flow rate: 15L/min

Pump: Annovi Reverberi RSV4G40 Triplex AR pump
Pump head: Brass
Pump pistons: Ceramic

Hose length: 15.24m
Detergent capability: Yes
Mains-water connection: Yes
Gravity-feed capability: Yes
Draws from barrel or tank: Yes

Frame material: 32mm tubular steel
Sound power level: 105dB LWA
No-load speed: 3400 RPM
Load speed: 3500 RPM

Net weight: 72.6kg
Gross weight: 73kg

Assembled dimensions:
820mm H × 755mm W × 1065mm L

Water-Suction and Priming Guidance

When drawing water from a barrel, tank or other non-mains source:

• Make sure the suction hose is completely sealed and has no air leaks.

• Position the pressure washer as close to the water source as possible.

• Air entering the suction side can prevent the pump from priming.

• Connecting the machine to mains water and operating it for approximately one minute may help release sticking valves.

• Prime the pump before connecting the high-pressure hose during start-up.

• Avoid exceeding the tested vertical suction height of two metres.

Fuel Requirements

Use good-quality automotive unleaded petrol suitable for four-stroke engines.

Do not mix petrol with engine oil.

When using E10 fuel:

• Use automotive E10 petrol with a minimum rating of 95 RON.

• A suitable fuel additive or stabiliser is recommended.

• Do not use fuel containing more than 10% ethanol.

• Use E10 fuel within 30 days of purchasing it.

• Do not leave E10 fuel stored inside the machine for more than four weeks.

• E10 fuel attracts moisture and may damage the fuel system when stored for extended periods.

• After draining the fuel tank, run the engine until the remaining fuel in the system has been consumed.

• Allow the engine to cool before draining the carburettor float bowl.

• Store and dispose of fuel responsibly and in accordance with local regulations.

Damage caused by incorrect, contaminated or poor-quality fuel may not be covered by the manufacturer’s warranty.

Engine Oil

The engine requires approximately 1200ml of engine oil.

Check the correct oil grade in the supplied user manual before operation. The manufacturer’s product page refers to SAE 10W-30, SAE 30 and 15W-40 oils in different sections.

Always check the oil level before starting the engine. The built-in low-oil protection system may automatically shut down the engine when the oil level is insufficient.

Warranty

The pressure washer is advertised with:

• Three-year domestic-use warranty

• One-year commercial-use warranty

• Parts and service support

Warranty conditions, registration requirements and exclusions may apply. Refer to the applicable JCB warranty terms for full details.
